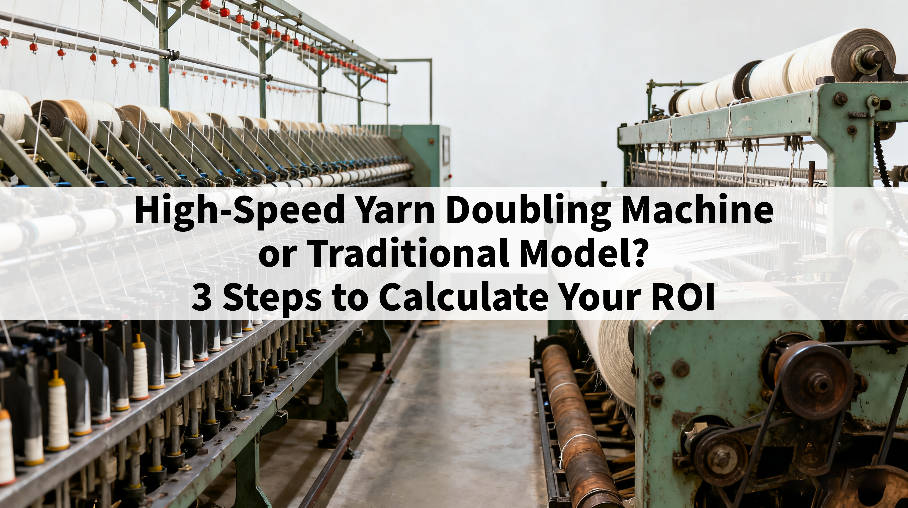

High-Speed Yarn Doubling Machine or Traditional Model? 3 Steps to Calculate Your ROI
2025-12-05
When you’re thinking about upgrading your yarn processing equipment and find yourself on the fence between a high-speed yarn doubling machine and a traditional model, your top concern is probably “how long it will take to get your money back”—after all, equipment investment isn’t a small sum, and you need to understand the return on investment (ROI) before making a move. There’s no need to worry, though: first, clarify the core differences between the two, then calculate costs and returns step by step, and you’ll easily figure out which model is better for you.
I. First, Clarify: Core Differences Between High-Speed Yarn Doubling Machines and Traditional Models
1.1 Production Efficiency: "High Output" vs. "Stable Output"
The core advantage of a high-speed yarn doubling machine lies in its “speed”—its actual operating speed is usually 30%-50% higher than that of traditional models. For example, traditional models typically operate at 800-1000 meters per minute (m/min), while high-speed models can reach 1200-1500 m/min. Faster speed directly translates to higher production capacity: in the same amount of time, a high-speed model can process more yarn. This capacity gap becomes tangible additional revenue, especially when you have stable, large-volume orders.
Traditional models, on the other hand, excel in “stability.” While their speed is lower, their technology is mature, and they rarely experience fluctuations during operation—making them suitable for small-batch, multi-variety production scenarios. However, if your production needs are “large-volume and continuous,” the capacity shortfall of traditional models becomes obvious. You might have to add more machines to make up for it, which in turn increases space and management costs.
1.2 Operating Costs: "Long-Term Savings" vs. "Upfront Savings"
Operating costs need to be viewed from three perspectives: energy consumption, labor, and maintenance. In terms of energy consumption, although high-speed models run faster, most are equipped with designs like variable frequency speed regulation and intelligent load adjustment. As a result, their energy consumption per unit of output is actually 15%-20% lower than that of traditional models. For example, processing 1 ton of yarn might require 50 kWh for a traditional model, but only 40-42 kWh for a high-speed one—creating a significant difference in electricity costs over the long run.
For labor costs, high-speed models have a higher degree of automation. Equipped with features like automatic splicing and yarn breakage detection, one worker can manage 4-6 high-speed machines. Traditional models, by contrast, mostly require manual splicing, so one worker can handle at most 2-3 units. If your production capacity needs are the same, high-speed models let you hire fewer workers, resulting in fixed monthly labor cost savings.
When it comes to maintenance costs, traditional models have the edge in “simplicity.” They have fewer core components, lower technical thresholds for repairs, and cheaper spare parts. High-speed models, with more complex structures (such as high-precision transmission systems), have slightly higher spare part costs for maintenance. Fortunately, their failure rate is no higher than that of traditional models—with regular maintenance as required, the total long-term maintenance cost doesn’t differ much.
1.3 Initial Investment: "High Entry Barrier" vs. "Low Initial Investment"
This is the most intuitive difference between the two: the purchase price of a high-speed yarn doubling machine is usually 40%-60% higher than that of a traditional model, and you also need to factor in installation and commissioning costs. For example, a single traditional model might cost 150,000-200,000 RMB, while a high-speed one could range from 250,000-320,000 RMB. If your budget is limited and you have no plans for significant capacity expansion in the short term, the low initial investment of traditional models is more appealing. However, if you plan to use the equipment long-term (e.g., for 5+ years), you must also consider the savings from subsequent operating costs—don’t focus solely on upfront investment.
II. 3 Steps to Calculate Your ROI
2.1 Step 1: Calculate the "Initial Investment Gap"
First, determine the number of machines you need to purchase (based on meeting your current production capacity requirements), then calculate the total investment gap between high-speed and traditional models. This includes three components: equipment purchase price, installation and commissioning fees, and auxiliary facility modification costs (e.g., high-speed models may require a more stable foundation or better power supply stability—don’t forget to include these modification costs).
Here’s a general calculation example: Suppose you need 5 machines. A traditional model costs 180,000 RMB per unit, with 10,000 RMB per unit for installation and commissioning, and almost no additional cost for auxiliary modifications. The total investment would be (180,000 + 10,000) × 5 = 950,000 RMB. A high-speed model costs 280,000 RMB per unit, with 15,000 RMB per unit for installation and commissioning, plus 50,000 RMB for foundation and power supply modifications. The total investment would be (280,000 + 15,000) × 5 + 50,000 = 1,525,000 RMB. The initial investment gap is 1,525,000 - 950,000 = 575,000 RMB—this is the “upfront extra cost” of choosing high-speed models.
2.2 Step 2: Calculate the "Annual Operating Cost Gap"
The operating cost gap is the core of ROI calculation—you need to calculate the “savings,” which mainly include energy savings, labor savings, minus any additional maintenance costs (if applicable).
First, calculate energy savings: Suppose you process 100 tons of yarn annually. A traditional model consumes 50 kWh per ton, with an industrial electricity cost of 1 RMB per kWh. The annual electricity cost for traditional models would be 100 × 50 × 1 = 5,000 RMB. A high-speed model consumes 42 kWh per ton, so its annual electricity cost is 100 × 42 × 1 = 4,200 RMB—saving 800 RMB per year.
Next, calculate labor savings: One worker can manage 3 traditional machines, so 5 traditional models require 2 workers (at full capacity), with a monthly salary of 6,000 RMB per worker. The annual labor cost would be 2 × 6,000 × 12 = 144,000 RMB. One worker can manage 5 high-speed machines, so 5 high-speed models only need 1 worker. The annual labor cost is 1 × 6,000 × 12 = 72,000 RMB—saving 72,000 RMB per year.
Finally, calculate maintenance cost differences: Traditional models cost approximately 10,000 RMB per unit per year for maintenance, so 5 units would cost 50,000 RMB. High-speed models cost around 12,000 RMB per unit per year, so 5 units would cost 60,000 RMB—an extra 10,000 RMB per year.
Adding these three together: Annual operating cost gap = 800 RMB (energy savings) + 72,000 RMB (labor savings) - 10,000 RMB (additional maintenance costs) = 62,800 RMB. In other words, choosing a high-speed model saves you an extra 62,800 RMB per year compared to a traditional model.
2.3 Step 3: Calculate the "Payback Period" and "Long-Term Returns"
Payback period = Initial investment gap ÷ Annual operating cost gap. Using the numbers above, that would be 575,000 RMB ÷ 62,800 RMB ≈ 9.16 years? Wait, that’s missing the “additional revenue from excess capacity”—high-speed models have higher capacity than traditional ones, and if you can use that excess capacity to take more orders, you need to include that revenue.
For example, 5 traditional models can process 100 tons of yarn annually, while 5 high-speed models—thanks to faster speed—can process 140 tons (based on 40% higher capacity). Assuming a net profit of 500 RMB per ton of yarn, the high-speed models generate an extra （140 - 100） × 500 = 20,000 RMB per year.
Adding this additional revenue, the actual annual extra earnings become 62,800 RMB + 20,000 RMB = 82,800 RMB. Now the payback period is 575,000 RMB ÷ 82,800 RMB ≈ 6.94 years.
If you plan to use the equipment for 10 years, the total extra profit from high-speed models compared to traditional ones would be: 82,800 RMB × 10 - 575,000 RMB = 253,000 RMB. Moreover, the longer you use the equipment, the more significant the long-term returns—over 15 years, the total extra profit would be 82,800 × 15 - 575,000 = 667,000 RMB. That’s the long-term value of choosing high-speed models.
Note: If your capacity needs are smaller—for example, you only need to process 80 tons of yarn annually—you won’t be able to use the excess capacity of high-speed models. In that case, you need to exclude the “additional revenue from excess capacity” and recalculate. Using the example above, excluding the 20,000 RMB extra revenue, the annual savings are 62,800 RMB, leading to a payback period of approximately 9.16 years. Over 10 years, the total extra profit would be 62,800 × 10 - 575,000 = 53,000 RMB. While the return is lower, it’s still more cost-effective than traditional models.
III. Final Judgment: Should You Choose a High-Speed Yarn Doubling Machine?
3.1 Look at "Production Demand": Choose High-Speed for Large Volumes, Traditional for Small Volumes
If you have long-term stable orders, process over 100 tons of yarn annually, or have plans for capacity expansion in the next 1-2 years, the capacity advantage of high-speed models will be fully utilized, leading to a faster payback. If you process less than 50 tons of yarn annually and mostly handle small-batch orders, the low initial investment and stable operation of traditional models are more suitable—there’s no need to pay extra for “high speed” you won’t use.
3.2 Look at "Usage Cycle": Choose High-Speed for Long-Term Use, Traditional for Short-Term Use
If you plan to replace the equipment within 5 years, the payback period for high-speed models may not be reached—traditional models are a better choice. However, if you intend to use the equipment for 8+ years, even with a higher upfront investment, the long-term operating cost savings and extra revenue from higher capacity of high-speed models will be far more cost-effective than traditional ones.
3.3 Look at "Financial Situation": Choose High-Speed if You Can Afford the Upfront Investment
If you have sufficient funds to cover the 40%-60% higher upfront investment compared to traditional models and aren’t in a hurry for short-term payback, high-speed models are the better option. If your budget is tight, or you need to allocate funds to more urgent areas (such as raw material procurement or market expansion), the low entry barrier of traditional models is more secure.
In fact, the core of choosing between high-speed and traditional models isn’t “which is more advanced,” but “which better fits your actual situation.” Calculate the three key factors—initial investment, operating costs, and capacity revenue—then combine them with your order volume, usage cycle, and financial status. This will help you accurately determine which model offers a higher ROI. After all, a good piece of equipment isn’t just the expensive one—it’s the one that lets you “earn back every penny you spend, and then some.”
